ABB

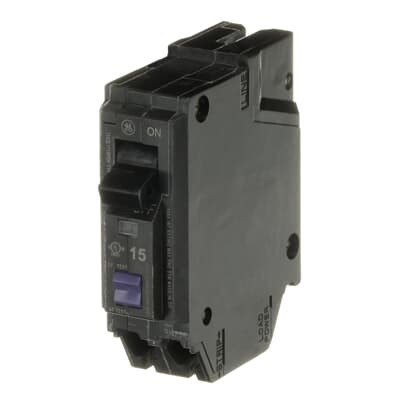

1-Pole Q-Line Plug-In Circuit Breakers
- SKU:
- THQL1120
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.31 LBS
Description
1-Pole Q-Line Plug-In Circuit Breakers
ABB Q-Line THQL circuit breakers are compact, thermal-magnetic plug-in breakers designed for dependable branch-circuit protection in residential and commercial load centers and lighting panels.
These single-pole THQL breakers are rated 120/240V AC with a 10 kA interrupting capacity and are available in 15, 20, 30, 40, and 50 amp ratings.
Key Features
- Single-pole Q-Line THQL plug-in circuit breaker
- 120/240V AC voltage rating
- 10 kA interrupting capacity
- Thermal-magnetic trip protection
- One-inch wide per pole compact design
- Quick-make / quick-break mechanism
- Easy-to-spot trip indication
- Plug-in mounting for compatible ABB / GE load centers
- Available ratings: THQL1115 15A, THQL1120 20A, THQL1130 30A, THQL1140 40A, THQL1150 50A
Typical Applications
Ideal for branch-circuit protection in residential panels, commercial lighting panels, receptacle circuits, small equipment circuits, and general power distribution applications.
Construction Details
Designed as a plug-in breaker for fast installation in compatible Q-Line load centers and panelboards.
Thermal-magnetic operation provides long-time and instantaneous protection against overloads and short circuits.
Compact one-inch-per-pole format helps maximize usable panel space.
Important Notes
Verify panel compatibility before installation.
Breaker amp rating must match the circuit conductor size and application requirements.
Installation should be performed in accordance with applicable electrical codes and manufacturer instructions.
